Sliding Mitre Saw TC-SM 2534/1 Dual

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Integrated drag function for wide workpieces up to 340 mm
    • Turntable with precise angle setting for angular cuts
    • Saw head tilts to the left and right for mitre cutting
    • Includes laser (mains-powered) for precise guidance while cutting
    • Supports for sawing long workpieces on both sides
    • Workpiece stop with rails adjustable to the left and right
    • High-grade carbide-tipped precision saw blade with 48 teeth
    • Clamping device for holding the workpiece securely in position
    • Includes sawdust bag to keep the workplace clean
    • Dust funnel behind saw blade to remove sawdust more effectively

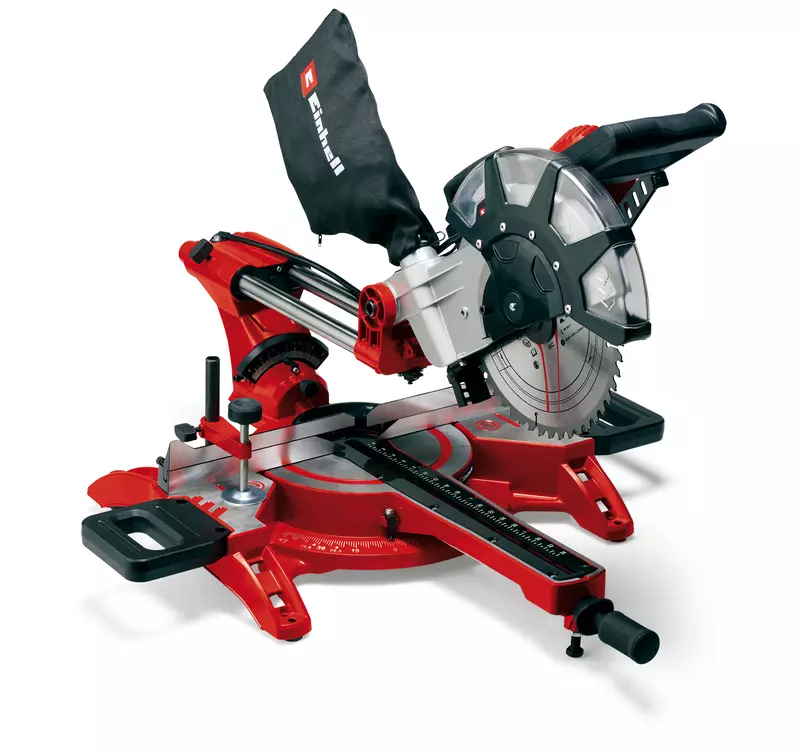

    einhell-classic-sliding-mitre-saw-4300395-productimage-001
    Article description

    The TC-SM 2534/1 Dual is a drag, crosscut and mitre saw for cutting wood, laminated panels and plastic. The saw head can be tilted continuously to the left and right for high flexibility in setting mitres on two sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2534/1 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The integrated drag function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width. The high-grade carbide-tipped precision saw blade guarantees clean, powerful cutting results. The sawdust bag keeps the workplace clean, while the dust funnel behind the saw blade is another big step up in the effectiveness of sawdust removal. A transport brace is provided for easy and safe mobility.

    Technical details

    % power S625 %
    Cutting depth 45° x 45°42 mm
    Cutting depth 90° x 90°75 mm
    Cutting width 45° x 45°240 mm
    Cutting width 90° x 90°340 mm
    Idle speed max.4000 min^-1
    Max. swivel range (saw head)45 °
    Max. swivel range (saw table)47 °
    Min. swivel range (saw head)45 °
    Min. swivel range (saw table)47 °
    Number of saw blade 1 teeth48 pcs
    Power S62350 W
    Product weight14.3 Kg
    Saw blade 1 diameter250 mm
    Saw blade holder diameter30 mm

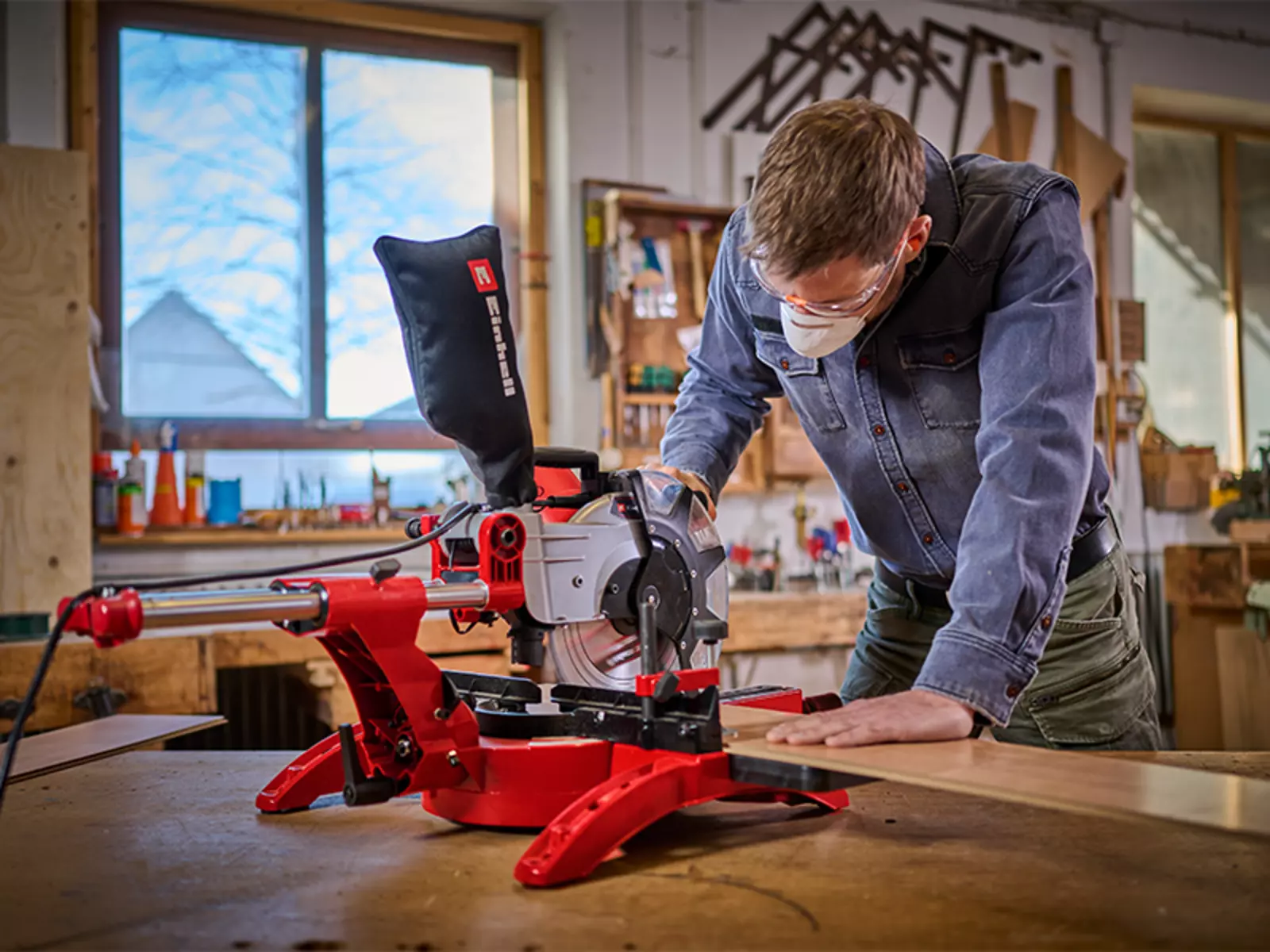

    Extensive cutting and mitre work? We've got the right tool for you!

    Equipped with a powerful 2,350 Watt motor, the Einhell sliding mitre saw reliably cuts a variety of materials such as wood, laminated panels, and plastics. The mitre saw features easy-to-read scales on both the head and swivel table. A clamping device securely holds the workpiece for safety. Changing the saw blade is effortless with the spindle lock.

    Extensive-cutting-and-mitre-work-Weve-got-the-right-tool-for-you
    Always-at-the-correct-angle

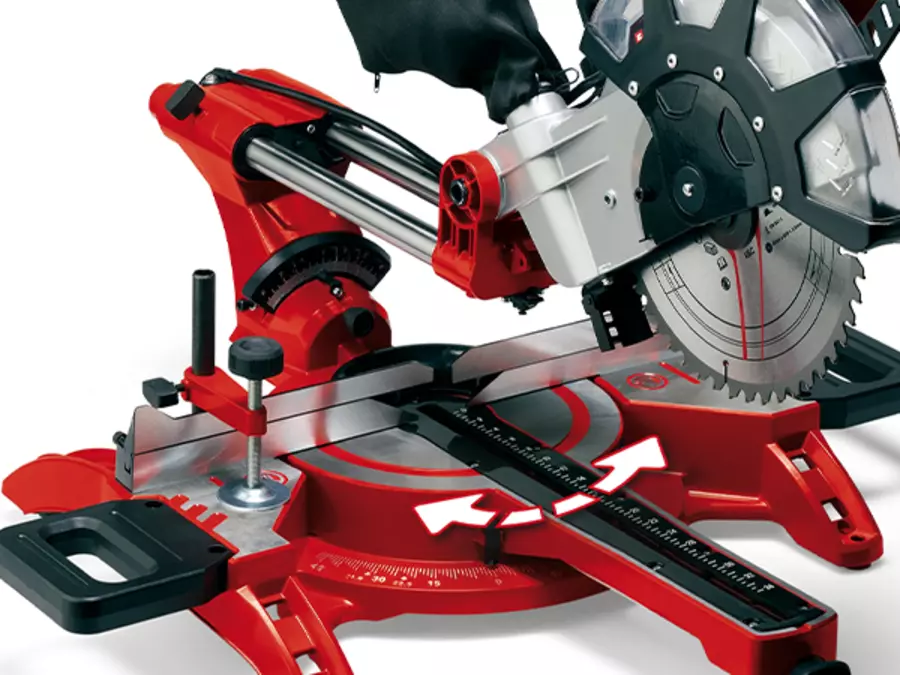

    Always at the correct angle

    The robust die-cast aluminum swivel table features locking positions for common angles used in DIY projects.

    Precise-in-every-situation

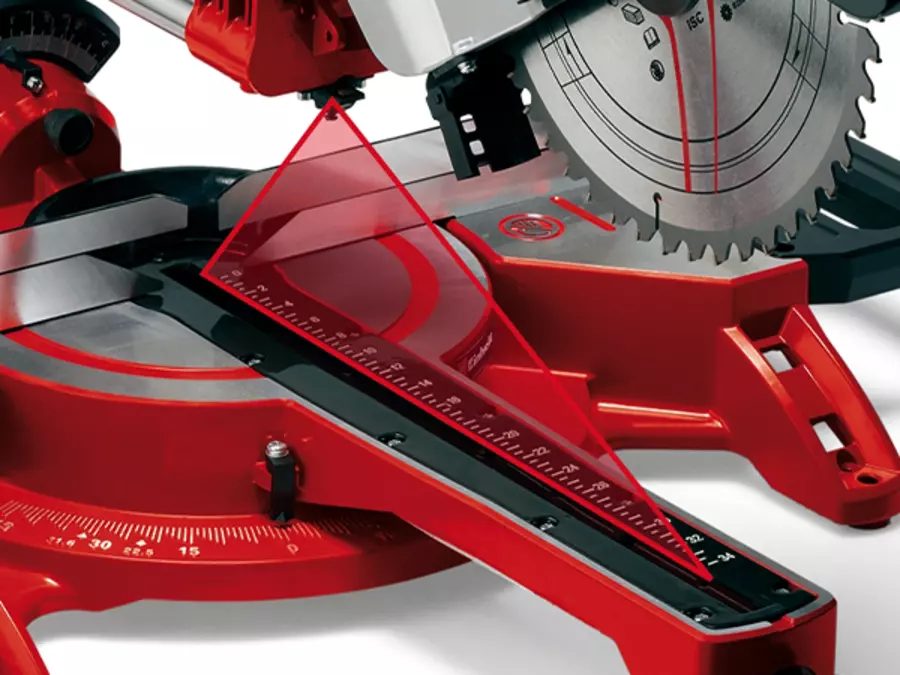

    Precise in every situation

    The mains-powered laser marks the cutting line: This allows the workpiece to be positioned precisely where the cut needs to be made.

    Free-from-dust-and-debris

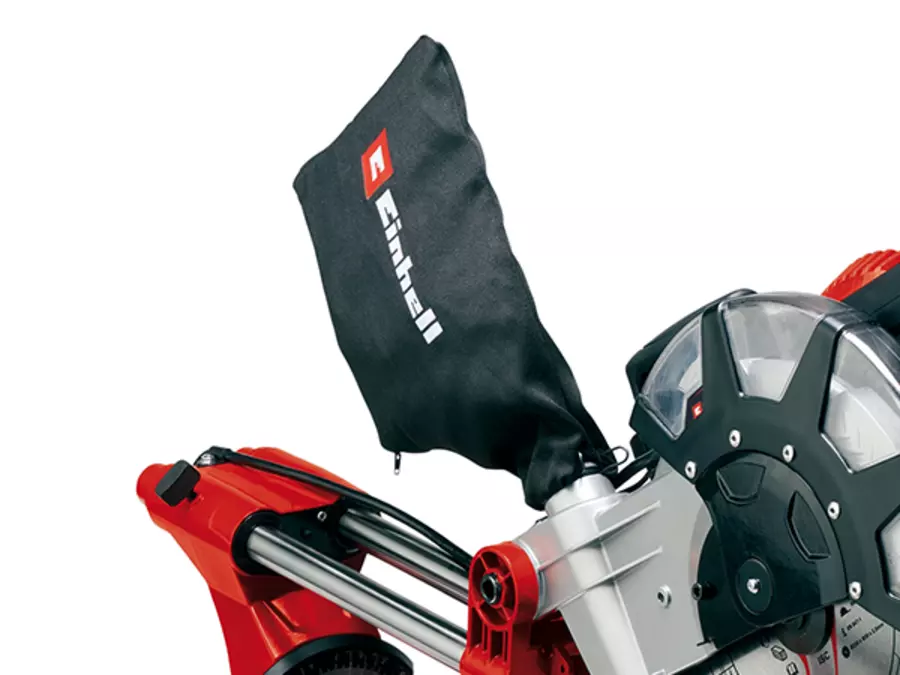

    Free from dust and debris

    The dust collection bag keeps the workplace clean, while the dust funnel behind the saw blade improves sawdust removal.

    Tiltable-saw-head

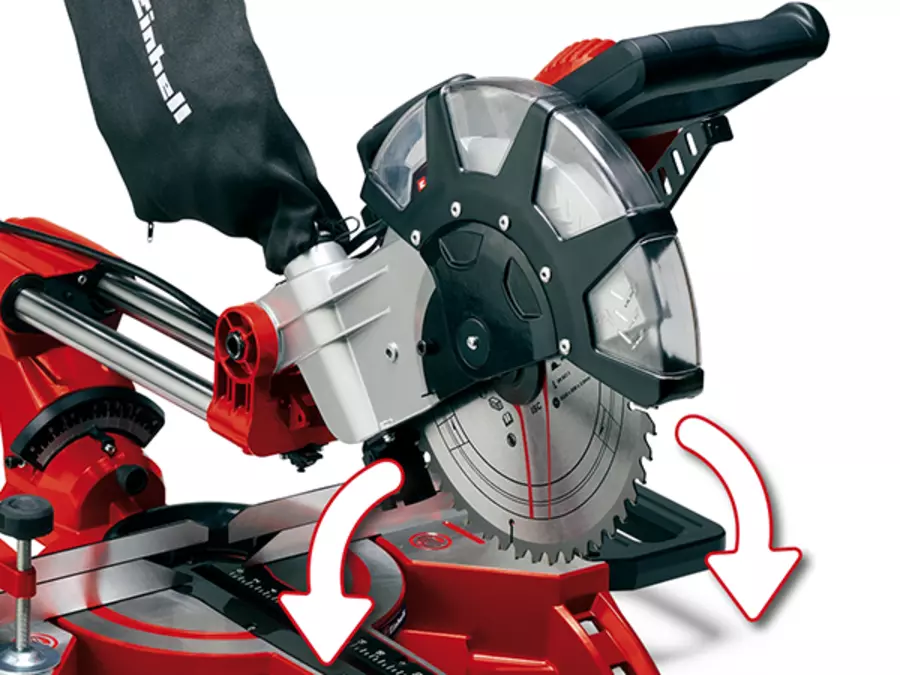

    Tiltable saw head

    The saw head tilts left and right from -45° to 45°: Large workpieces do not need to be rotated and can be processed in any position.

    Extensive cutting and mitre work? We've got the right tool!

    The Einhell sliding mitre saw TC-SM 2534/1 Dual is equipped with a high-quality carbide saw blade, making it perfectly suited for extensive cutting and mitre work in home, workshop, or garage.
